The dual-line Ethernet switch is a network access device specifically designed for industrial environments. Its core technology strictly adheres to the 10BASE-T1L Ethernet standard. This standard enables symmetrical data transmission rates of up to 10 Mbps over a single pair of twisted wires, with a maximum communication distance of 1000 meters. This provides an excellent physical layer foundation for the flexible deployment of equipment in industrial sites. This switch is suitable for network construction in secure areas and can provide a stable and reliable data aggregation channel for the acoustic vibration temperature Ethernet monitor system. In terms of system scalability, this switch has a powerful cascading function, supporting up to 8 sequential access of acoustic vibration temperature Ethernet monitors. Through standard Ethernet protocols for data interaction, each monitor can transmit critical parameters such as sound, vibration, and temperature in real time and accurately to the upper-level monitoring system, meeting the demand for multi-node data collection in industrial environments. As an economical access solution for the acoustic vibration temperature Ethernet monitor system, this switch ensures performance while significantly reducing system construction costs. It adopts a two-wire design, greatly simplifying on-site wiring work, reducing cable material consumption and installation labor hours, and is particularly suitable for rapid deployment and upgrading in existing industrial facilities. Compared with traditional multi-wire Ethernet solutions, it not only saves initial investment but also reduces long-term maintenance costs, providing users with a cost-effective network access option, and effectively facilitating the intelligent upgrade of industrial monitoring systems.

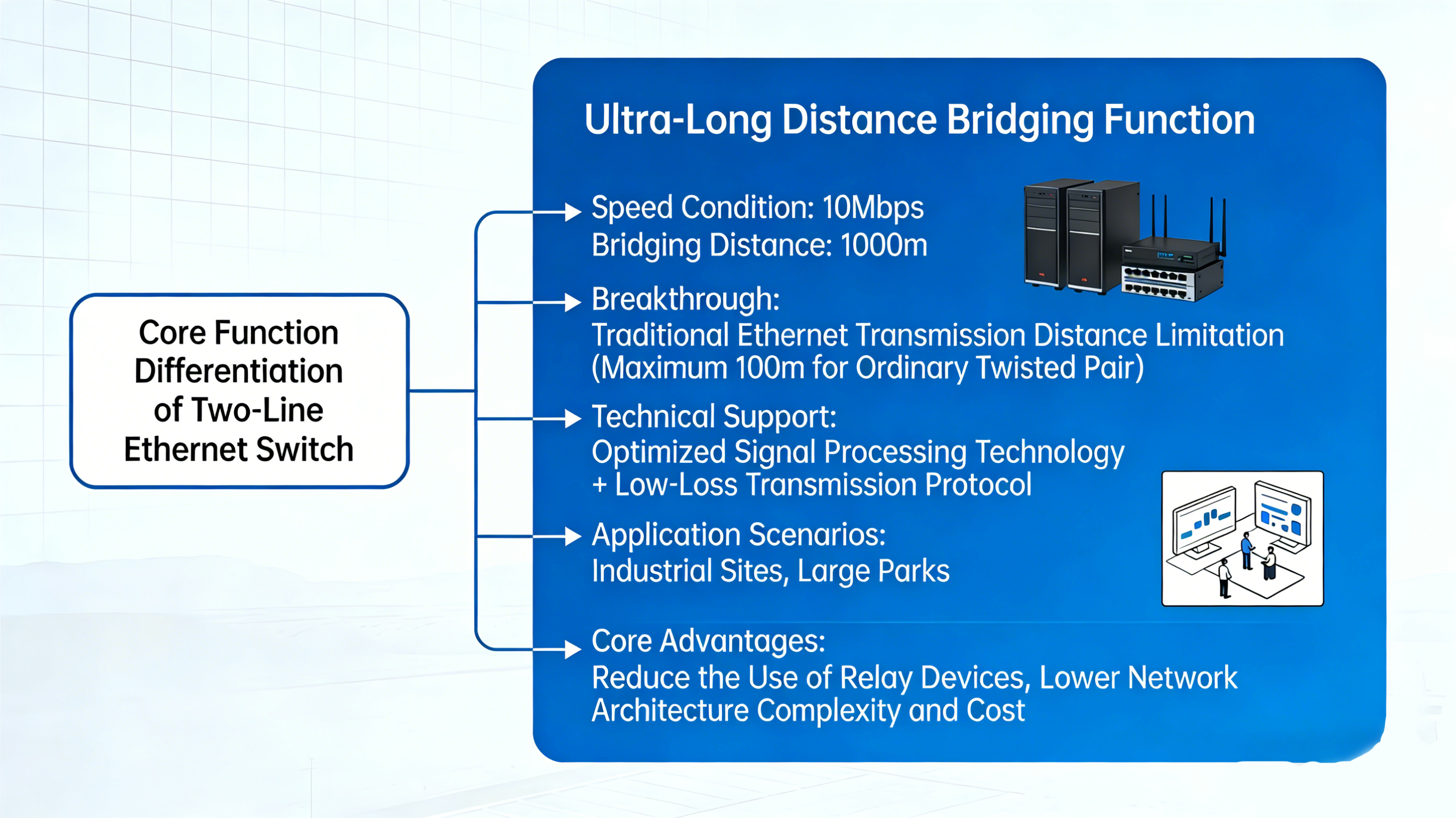

This switch supports a bridging distance of up to 1000 meters at a rate of 10 Mbps. This feature breaks through the limitations of traditional Ethernet transmission distances (such as the maximum transmission distance of ordinary twisted-pair Ethernet being 100 meters). By optimizing signal processing technology and using low-loss transmission protocols, it ensures stable data transmission within a 1000-meter range, suitable for long-distance network deployment scenarios in industrial sites and large parks, reducing the need for repeater equipment, and lowering the complexity and cost of the network architecture.
Compared with the traditional Ethernet that requires 4 or 8 wires for wiring, this switch achieves the characteristic of "less wiring workload" through a streamlined design. When installing, users do not need to distinguish the complex wire sequence (such as the T568A/B standard), and only need to connect two wires to complete the deployment. This significantly shortens the installation time and reduces the risk of faults caused by incorrect wiring, especially suitable for non-professionals or rapid deployment scenarios, improving operational convenience and maintenance efficiency.

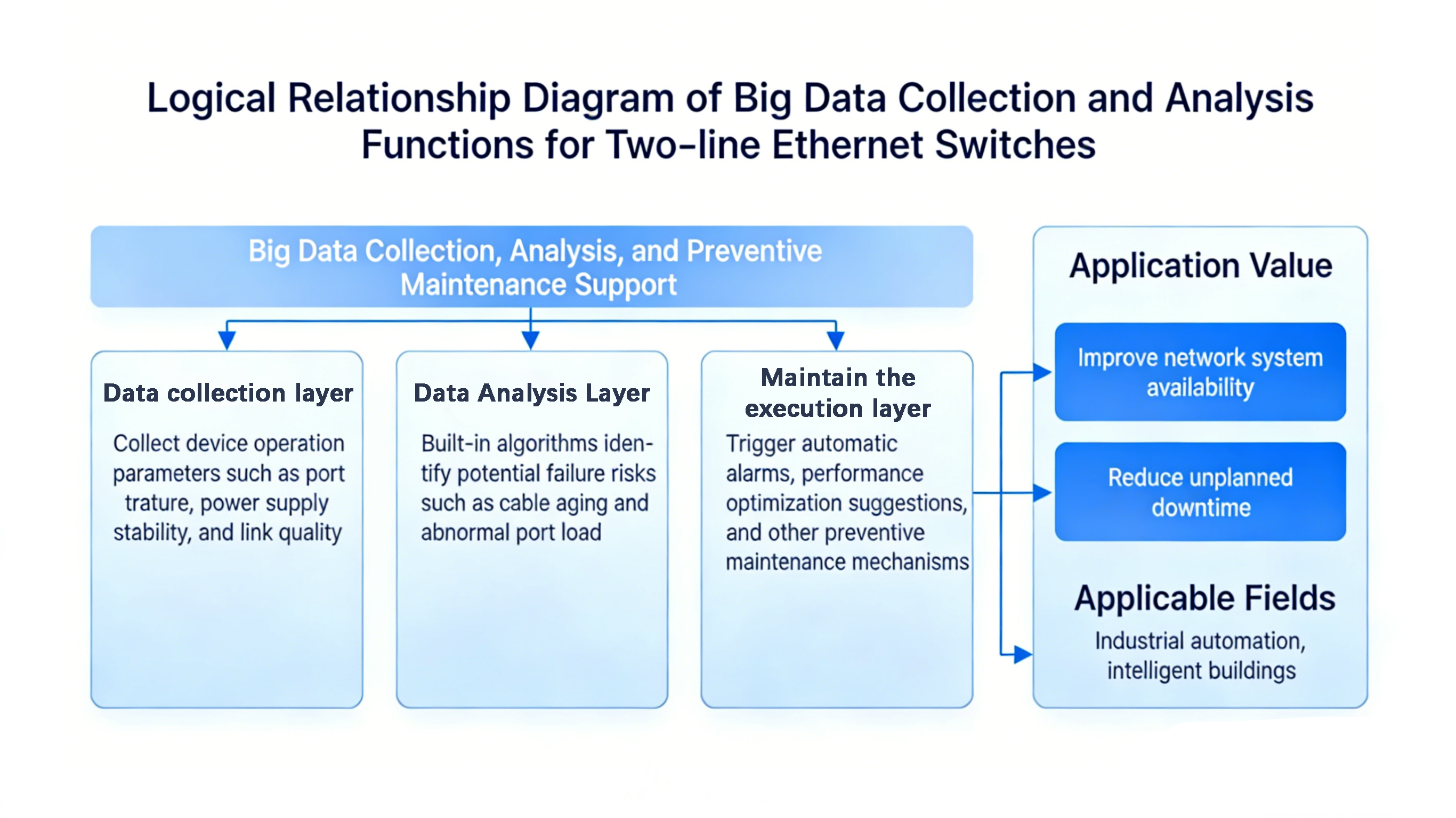

The switch has the ability to collect and analyze a large amount of additional data, and can monitor the network status, device operating parameters (such as port traffic, temperature, power supply stability, etc.) and link quality in real time. Through the built-in data analysis algorithm, it can identify potential failure risks (such as cable aging, abnormal port load, etc.) and trigger preventive maintenance mechanisms (such as automatic alerts, performance optimization suggestions), thereby improving the availability of the entire network system, reducing unplanned downtime, and is suitable for industrial automation and intelligent building fields with high reliability requirements.

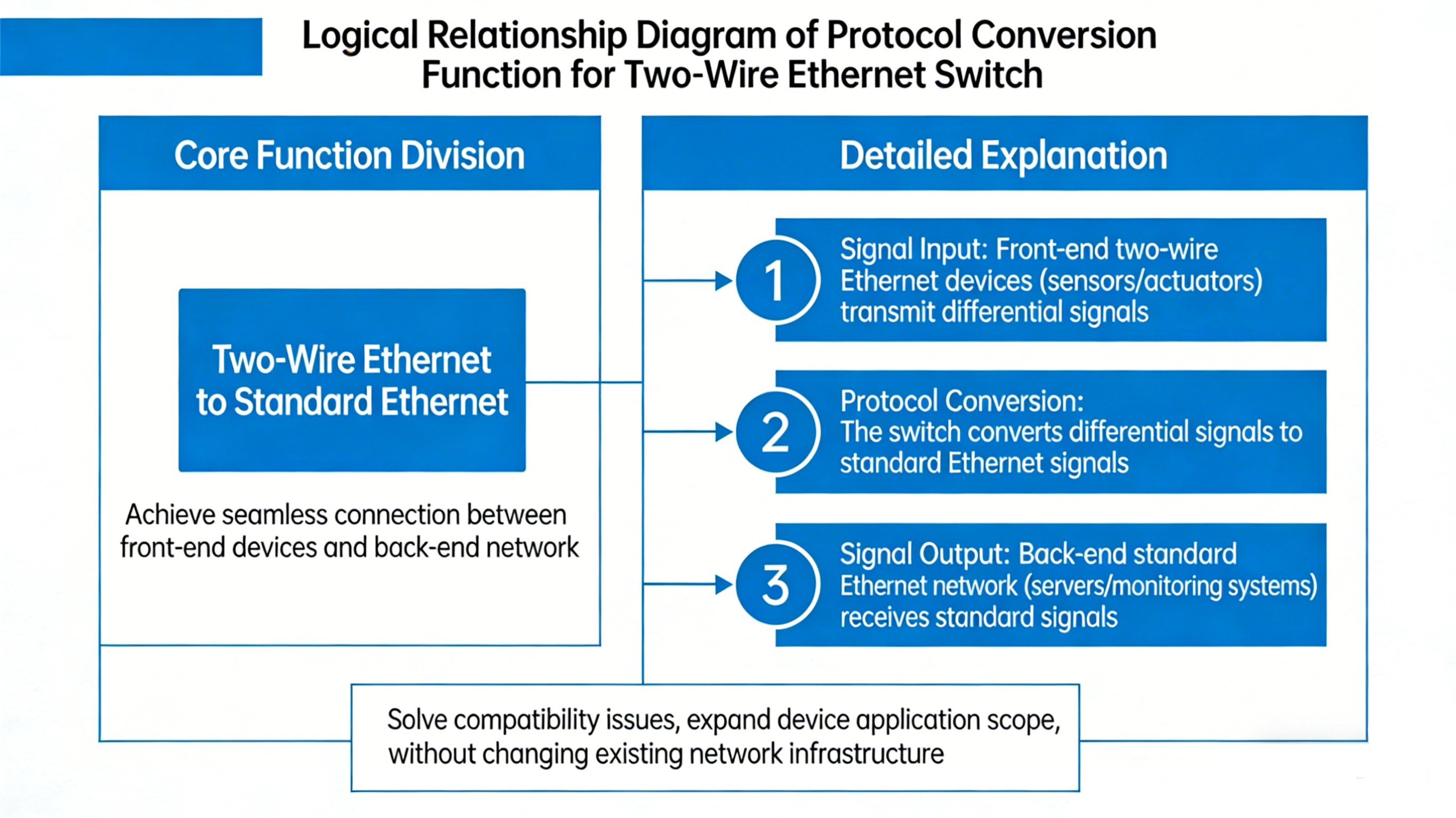

One of the core functions of this switch is to achieve the protocol conversion from "dual-line Ethernet to ordinary Ethernet". It can convert the differential signals transmitted by the front-end dual-line Ethernet devices (such as sensors and actuators) into standard Ethernet signals, enabling them to seamlessly connect with the back-end ordinary Ethernet network (such as servers and monitoring systems). This conversion capability addresses the compatibility issue between dual-line Ethernet devices and traditional networks, expands the application scope of the devices, and allows for accessing new dual-line Ethernet terminals without the need to replace the existing network infrastructure.

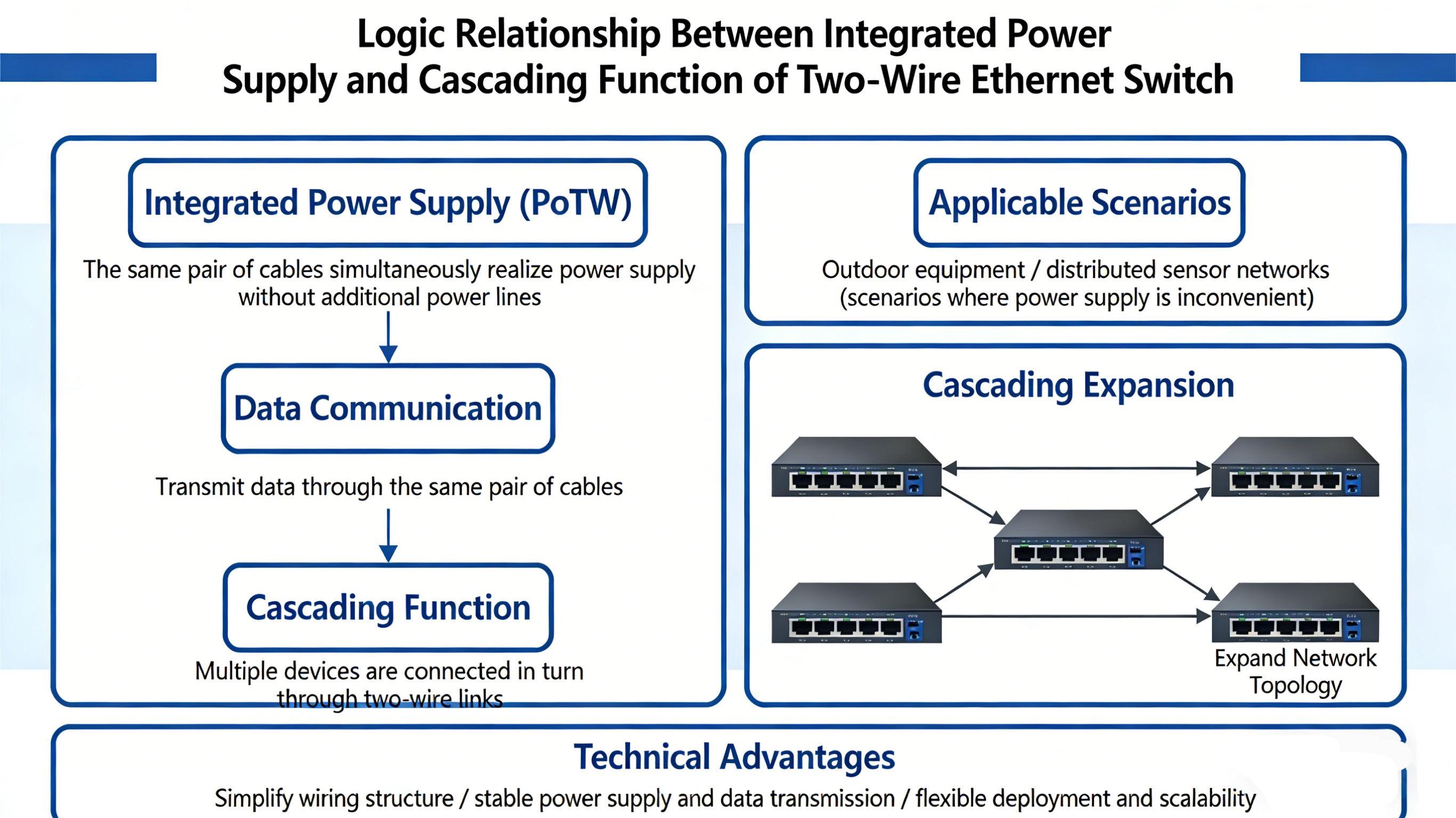

The switch adopts the "two-wire Ethernet" technology, which enables power supply (Power over Two-Wire, PoTW) and data communication to be achieved simultaneously through the same pair of cables without the need for additional power lines. This simplifies the wiring structure and is particularly suitable for scenarios where power supply is not convenient (such as outdoor equipment and distributed sensor networks). At the same time, this switch supports cascading functionality. Multiple devices can be connected in sequence through a two-wire link to form an extended network topology, meeting the demand for large-scale device access. During the cascading process, the stability of power supply and data transmission is maintained, further enhancing the flexibility and scalability of network deployment.
The motor condition sensor is a high-performance sensing device specifically designed for monitoring the status of motors. It boasts outstanding high insulation and withstand voltage capabilities, enabling stable operation in complex electrical environments and effectively resisting voltage fluctuations and interference that may occur during motor operation. Its unique surge protection design further enhances the device's ability to withstand instantaneous high voltage impacts, providing a solid guarantee for the long-term stable operation of the sensor in various harsh working conditions. Additionally, the sensor employs an overall sealing process, which can completely prevent the intrusion of corrosive substances such as dust, moisture, and oil from the outside, significantly improving the environmental adaptability and service life of the equipment. With its excellent performance design, this motor condition sensor can be widely applied to the frequency monitoring of all types of motors, whether they are small precision motors or large industrial motors, accurately capturing the rotational speed information during motor operation, providing crucial data support for motor condition assessment, fault warning, and maintenance.
The motor cloud box is an intelligent monitoring terminal specifically designed for industrial scenarios, deeply integrating the ability to comprehensively collect key parameters of the motor's operating status. Specifically, it can accurately capture the acceleration data of the motor, monitor the vibration of the equipment in real time, and promptly detect potential mechanical fault hazards; simultaneously, it collects temperature information of key parts such as the motor stator and bearings, effectively preventing equipment damage caused by overheating; precisely measures the real-time rotational frequency of the motor, grasping the changes in equipment operation speed; at the same time, it continuously monitors the electrical parameters of the motor, such as voltage, current, and power, and comprehensively analyzes the energy consumption and electrical performance of the motor. Moreover, the motor cloud box can accurately obtain the load data of the motor's working condition, clearly reflecting the actual operating load of the equipment. This product is widely applicable to the daily monitoring needs of various industrial motors, especially providing a cost-effective solution for comprehensive protection of key rotating equipment such as industrial motors, fans, and pumps. In terms of communication and interfaces, the motor cloud box highly integrates a variety of connection methods, including WIFI wireless communication, CAT1 cellular network, Bluetooth 5.0 near-field communication, and RS485 industrial bus interface, ensuring the flexible deployment of the equipment in different industrial environments and stable data transmission. Through various advanced technical means, the motor cloud box achieves full-dimensional and comprehensive monitoring of the motor from mechanical vibration, temperature changes to electrical parameters and load conditions. Its core advantage lies in upgrading the traditional motor monitoring mode to cloud-based and intelligent management, using the cloud platform to achieve centralized storage, remote access, and analysis of data. More importantly, the product is equipped with an AI automatic intelligent diagnosis function, which can conduct deep learning and intelligent analysis based on the massive collected data, automatically identify abnormal states of the motor, predict potential faults, and promptly issue warning information, thereby making the motor supervision work more forward-looking, intelligent, and efficient, providing a solid guarantee for the safe and stable operation of industrial production.
